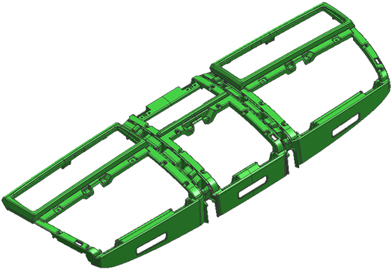

Client: RENAULT
Product name
Product size:915x595x245
Product material:PA6+20%GF
Mold cavity: 1X1
Forming cycle:65S
Design cycle:25 working days
Manufacturing cycle:60 working days
Moulds weight: 26T
Manufacturing date: 2009.12

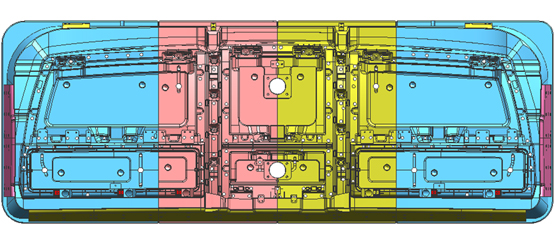

镶拼式后模仁结构设计：
保证足够的模仁强度
加工周期更短，精度更高
冷去更充分

Bluestar has nearly 100 staff specialize in mold design. We set up R&D center providing from product development, project management, technology support, various mould design and manufacturing, quality inspection and after sale service to global companies. Along with the all aspects of secondary development, IM3 System, ERP System and mould standardize, all aspects have been enhanced such as quality control system. Design team use CAD, CAE and CAM to assist design. CAD output 2D drawing and 3D image. CAE simulation is to ensure optimal manufacturing mode and then using CAM for computer imitation. Rely on advanced equipment and 20 years experience, Bluestar have built a diversified customer from all kinds of industry.
